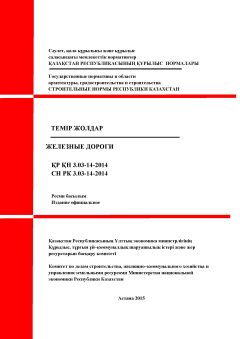

SN RK 3.03-14-2014 PDF

Full title and description

SN RK 3.03-14-2014 — "Railways" (СН РК 3.03-14-2014 «Железные дороги»). This Kazakhstan national construction standard specifies requirements for the design, construction and operation of railway infrastructure (main tracks, additional tracks, reconstruction and strengthening of existing lines) for the 1520 mm gauge.

Abstract

These construction norms establish functional and operational requirements, performance (working) characteristics and technical rules for railway lines of 1520 mm gauge intended for passenger and freight traffic. They cover track structure, earthworks, drainage, upper and lower track structure elements, and parameters related to axle and linear loads and maximum operating speeds for different train categories.

General information

• Status: Active (in force). Introduced by order of the Committee on Construction of the Ministry of National Economy of the Republic of Kazakhstan; entered into force on 1 July 2015.
• Publication date: 29 December 2014 (approved 29 December 2014; effective from 01 July 2015).
• Publisher: Committee on Construction, Housing and Communal Services and Land Management — Management of Technical Regulation and Standardization, Ministry of National Economy of the Republic of Kazakhstan.
• ICS / categories: Construction of railways — ICS 93.100 (Civil engineering — construction of railways).
• Edition / version: 2014 edition (document number SN RK 3.03-14-2014).
• Number of pages: 29 pages (PDF and printed formats available from standards distributors).

Scope

This standard applies to the design, construction and operation of new railway lines, additional main tracks (second, third and fourth tracks) and the strengthening or reconstruction of existing public railway lines of 1520 mm gauge. It covers infrastructure designed for axle load on a rail from a four-axle wagon of 245 kN (25 t), a linear load of an eight-axle wagon of 103 kN (10.5 t), and train operating speeds up to: passenger trains — 200 km/h; freight trains — 120 km/h; accelerated freight and refrigerated freight — up to 140 km/h (inclusive).

Key topics and requirements

• Definitions and terminology specific to railway infrastructure (upper and lower track structure, earthworks, ballast, sleepers, etc.).
• Functional requirements for route capacity, alignment, and intended traffic categories (passenger, freight, high-speed parameters).
• Working (performance) characteristics: permissible axle and linear loads, track geometry tolerances and allowable speeds for different train types.
• Design rules for track structure (rails, fastenings, sleepers/plates, ballast), drainage and protection of earthworks.
• Requirements for reconstruction/strengthening of existing lines to meet higher load or speed classes.
• References to related national and intergovernmental normative documents and normative links used by designers.

Typical use and users

Primary users are railway infrastructure designers, civil and track engineers, construction contractors, infrastructure owners/operators, railway planners and regulatory authorities in Kazakhstan. The standard is used when preparing design documentation, tender specifications, construction supervision and technical acceptance of new or reconstructed railway lines within the stated scope.

Related standards

Related СН РК and SP РК standards in the same series include standards on bridges and pipes, tunnels, railway stations, industrial transport and other transport/road design norms (e.g., СН РК 3.03-12-2013, СН РК 3.03-15-2014, СН РК 3.03-17-2013). Users should also check referenced national and interstate documents cited in the normative references section of the standard.

Keywords

railways; railway design; track structure; 1520 mm gauge; axle load; railway speeds; reconstruction; СН РК; SN RK; Kazakhstan building norms.

FAQ

Q: What is this standard?

A: SN RK 3.03-14-2014 is a Kazakhstan construction norm titled "Railways" that sets technical and functional requirements for design, construction and operation of 1520 mm gauge railway lines.

Q: What does it cover?

A: It covers route scope, track and earthwork design requirements, performance characteristics (axle and linear loads), allowable train speeds by category, and rules for strengthening or reconstructing existing lines to specified load/speed classes.

Q: Who typically uses it?

A: Railway and civil engineers, infrastructure owners/operators, construction contractors, regulatory bodies and planning organizations operating in Kazakhstan or on projects that must comply with Kazakhstani railway construction norms.

Q: Is it current or superseded?

A: The document was approved on 29 December 2014 and entered into force on 1 July 2015; it is listed as active (in force). Users should verify whether subsequent amendments or newer editions have been published for the latest status.

Q: Is it part of a series?

A: Yes — it is part of the СН РК series of construction norms covering transportation infrastructure (roads, bridges, tunnels, stations, industrial transport etc.), intended to harmonize design and construction requirements across transport subsectors in Kazakhstan.

Q: What are the key keywords?

A: Railways; track design; 1520 mm gauge; axle load 245 kN; linear load 103 kN; passenger speed 200 km/h; freight speed 120–140 km/h; СН РК 3.03-14-2014.
